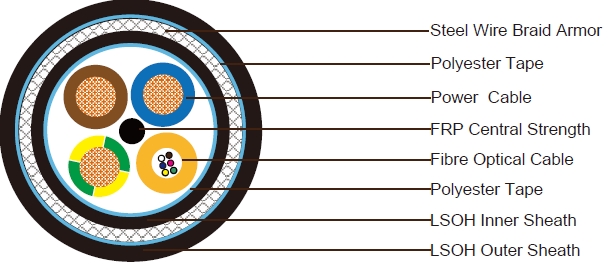

3x2.5 Power Cable + 6C Optical Fibre Cable SWB LSZH Sheathed Composite Cable
3x2.5mm² Power Cable ( around central member )
| Conductor |
50/0.25mm Stranded bare copper wire |
| Insulation |
XLPE. Thickness is 0.86mm. Outer diameter 3.5mm |
| Insulation Color |
Blue, Brown and Green/Yellow |
6C Optic Fiber Cable
| No of fibers in loose tube |
6 fibers |
| Loose tube |
Outer diameter: 3.5mm (PE or PVC Sheathwould be used over the loose tube if necessary) |
Element Assembly
| Wrapping Tape |
Ployester tape |
| Inner Sheath |
Grey LSZH, thickness 0.8mm |
| Armor |
Galvanised steel wire armour, coverage 99% |
| Wrapping Tape |
Ployester tape |
| Sheath |
LSZH, thickness 1.6mm, norminal outer diameter 16.2mm |
| Sheath Color |
Grey |
|
|
|
|
| |
|
|
